This section provide all details concerned with available SDK modules, with specifications for all related components (e.g. Trigger, Condition Checker, Performer).
Please notice that some modules require OAuth authentication (e.g. Facebook, Gmail). More details on how to exploit such modules by effectively handling authentication, will be provided in section OAuth Based Modules.
Module | Description | Auth | Version | Dependencies |
---|---|---|---|---|
Activity Manager | Allows to handle applications installed on device. | 1 | Core | |
Airplane | Allows to control airlplane mode. | 3 | Core | |
Alarm | Defines functionalities concerned with alarms and temporal controls. | 3 | Core | |
Battery | Allows to control functionalities concerned with device battery. | 1 | Core | |
Bluetooth | Allows to control Bluetooth on device. | 4 | Core | |
Camera | Defines functionalities for controlling device camera. | 1 | Core | |
Contacts | Allows interfacing with contacts available on device. | 1 | Core | |
Core | Defines core components for building rules and provides all basic value types to be used in other modules. | 1 | - | |

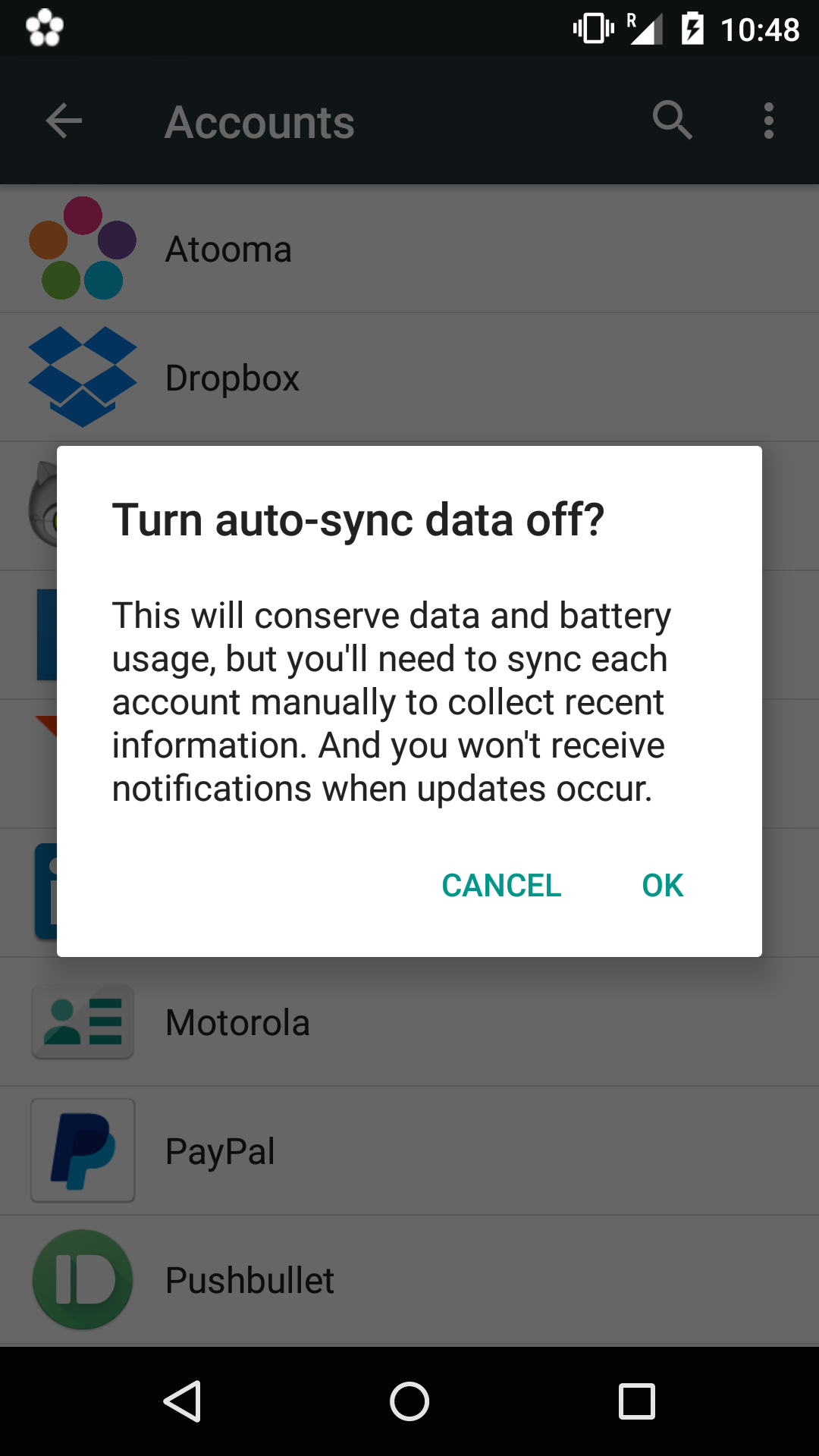

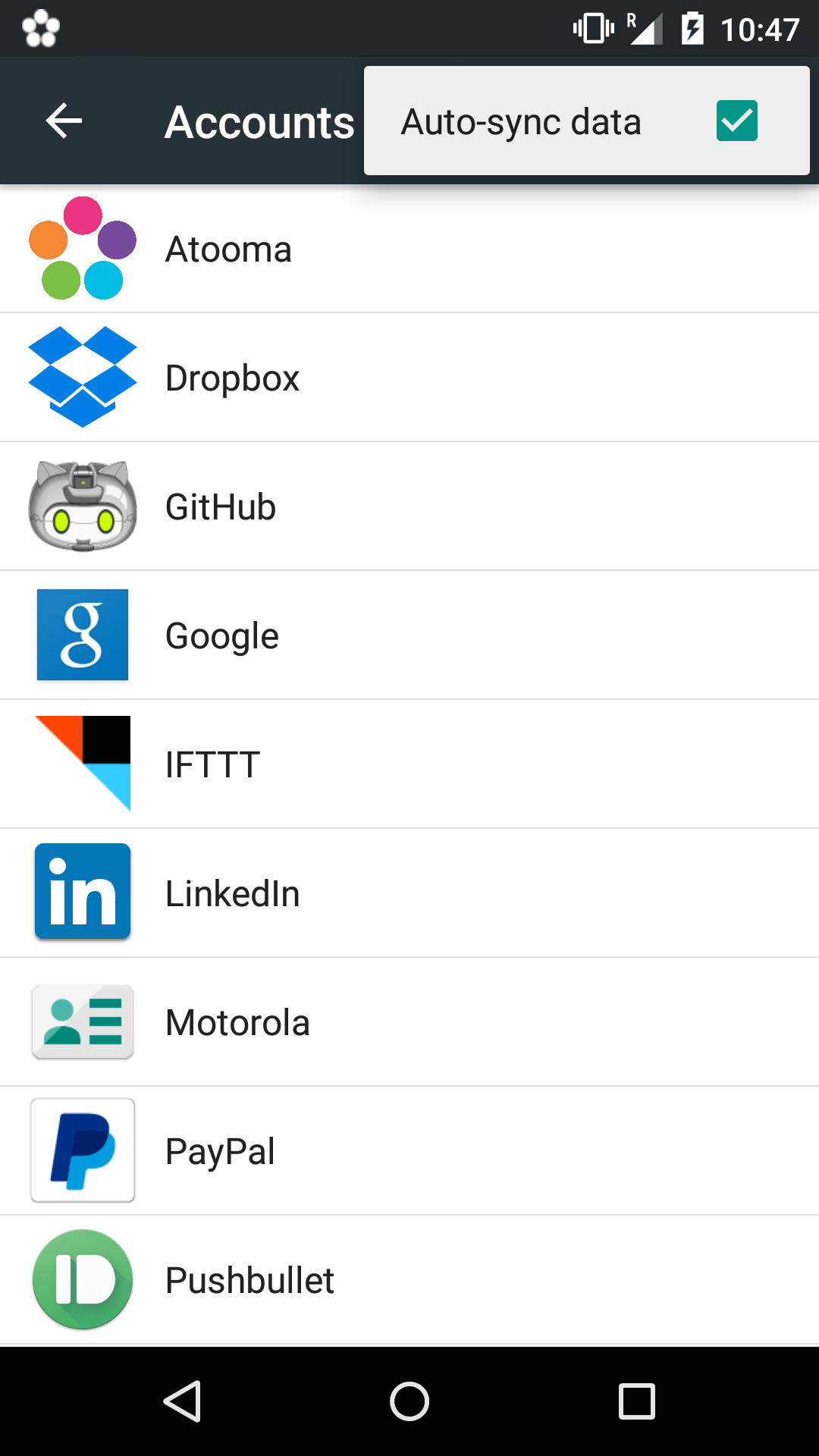

Data Sync | Allows to control background synchronization settings. | 1 | Core | |
Dropbox | Implements integration with Dropbox. | Yes | 4 | Core |
Implements integration with Facebook. | Yes | 1 | Core | |
Google Calendar | Implements integration with Google Calendar. | Yes | 1 | Core Location |
Google Drive | Implements integration with Google Drive. | Yes | 5 | Core |
Gmail | Implements integration with Gmail. | Yes | 4 | Core, Contacts |
Headphone | Allows to check headphones presence. | 1 | Core | |
Implements integration with Instagram. | Yes | 4 | Core | |
Location | Allows to determine device position. | 3 | Core | |
Notification | Allows to show notifications during rule execution. | 1 | Core | |
Shake | Provides features to handle and react to shake gestures. | 1 | Core | |
SMS | Allows to send and receive SMS. | 1 | Core, Contacts, Telephony | |
Telephony | Allows to control basic device features. | 1 | Core, Contacts | |
Text To Speech | Executes Text To Speech functionalities. | 1 | Core | |
Implements integration with Twitter. | Yes | 1 | Core | |
Weather | Provides utilities for weather forecast and for monitoring current weather conditions. | 2 | Core, Location | |
WiFi | Allows to control WiFi on device. | 3 | Core |
All modules implementing integration with external services require an authentication flow to be implemented before using them. Common choice in this sense is OAuth, that is an open standard for authorization. OAuth provides client applications a secure delegated access to server resources on behalf of a resource owner. In particular, idea behind OAuth is to allow alphanumeric access tokens to be issued to third-party clients by an authorization server, with the approval of the resource owner. The client then uses the access token to access the protected resources hosted by the resource server.
All modules having access to an external service need to implement the corresponding OAuth flow (in some cases like Facebook, such flow is already implemented by a dedicated SDK). Target is getting a valid access token to be used for all requests to the external server. Atooma SDK defines ab abstract class ChannelHandler
that is used for implementing the relationship between a module and its OAuth flow. Such class provides three main methods and its usage requires three abstract methods to be implemented.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 | /**
* To be invoked for connecting to a specific channel,
* retrieving corresponding valid access token.
*/
public void connect(Context context);
/**
* To be invoked for disconnecting from a specific channel,
* clearing stored access token.
*/
public void disconnect(Context context);
/**
* To be invoked for checking whether a valid token
* is already available or not. This method can be
* used for deciding whether to activate a rule or not.
*/
public boolean isConnected(Context context);
/**
* Method implementing logic for starting OAuth flow
* for the current channel.
*/
abstract protected void doConnection(Activity source);
/**
* Method implementing logic for retrieving username
* from outcome of the OAuth flow execution.
*/
abstract protected String extractUserFromResult(Intent data);
/**
* Method implementing logic for retrieving access token
* from outcome of the OAuth flow execution.
*/
abstract protected String extractTokenFromResult(Intent data);
|
The OAuth authentication flow via Dropbox is already implemented by a dedicated SDK. The only information required to perform the authentication is the setting of some data within the Manifest file:
1 2 3 4 5 6 7 | <meta-data
android:name="dropbox_app_key"
android:value="YOUR_APP_KEY"/>
<meta-data
android:name="dropbox_app_secret"
android:value="YOUR_APP SECRET"/>
|
This data can be found in Dropbox Developer page, within the settings of your own application.
Besides the user application’s data another necessary information is required, that is the declaration of the Dropbox Authentication Activity within the Manifest.
1 2 3 4 5 6 7 8 9 10 11 12 13 | <activity
android:name="com.dropbox.client2.android.AuthActivity"
android:configChanges="orientation|keyboard"
android:launchMode="singleTask"
android:screenOrientation="portrait">
<intent-filter>
<!-- Change this to be 'db-' followed by your app key -->
<data android:scheme="db-YOUR_APP_KEY"/>
<action android:name="android.intent.action.VIEW" />
<category android:name="android.intent.category.BROWSABLE" />
<category android:name="android.intent.category.DEFAULT" />
</intent-filter>
</activity>
|
Let’s consider for example Gmail module. A possible implementation of ChannelHandler
is reported below:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 | public class GmailChannelHandler extends ChannelHandler {
@Override
protected void doConnection(Activity source) {
Intent intent = new Intent(source, GmailActivity.class);
source.startActivityForResult(intent, 8888);
}
@Override
protected String extractUserFromResult(Intent data) {
return data.getStringExtra(GoogleOAuth2Activity.PARAM_EMAIL);
}
@Override
protected String extractTokenFromResult(Intent data) {
return data.getStringExtra(GoogleOAuth2Activity.PARAM_TOKEN);
}
@Override
public boolean isConnected(Context context) {
return !TextUtils.isEmpty(getToken(context));
}
}
|
Where GoogleOAuth2Activity
is an SDK Activity
that encapsulates the entire Google Oauth2 flow, simplifying the integration of Google services. As an example, for Gmail we’ll have following implementation:
1 2 3 4 5 6 7 8 | public class GmailActivity extends GoogleOAuth2Activity {
@Override
protected String getScope() {
return "https://mail.google.com/";
}
}
|
In case Play Services
are not available, GoogleOAuth2Activity
will handle authentication via web but it requires the setup of two meta-data fields
in the manifest:
1 2 3 4 5 6 7 | <meta-data
android:name="com.google.oauth.ClientId"
android:value="your CLIENT_ID" />
<meta-data
android:name="com.google.oauth.ClientSecret"
android:value="your CLIENT_SECRET" />
|
Authentication via Instagram requires additional meta-data fields in the manifest:
1 2 3 4 5 6 7 | <meta-data
android:name="instagram_client_id"
android:value="YOUR_CLIENT_ID"/>
<meta-data
android:name="instagram_redirect_uri"
android:value="YOUR_REDIRECT_URI"/>
|
This data can be found in Instagram Developer page, within the settings of your own application. The redirect URI should be implemented on a dedicated server. The logic of the endpoint of the redirect URI must follow the instructions written here on Instagram Developers Web Site (Server Side Explicit Flow). Essentially, your endpoint will receive a ‘code’ parameter from Instagram. All you have to do is performing a HTTP POST to https://api.instagram.com/oauth/access_token in order to convert the request token to an access token. This POST request must contain the following parameters in the payload: client_id, client_secret, redirect_uri, grant_type, code. The grant_type parameters must be set to ‘authorization_code’, while the code parameter is the code just received. A successful response contains the access_token, id, username, full_name, profile_picture parameters. All you have to do is returning all these parameters in a JSON format as follows:
{ obj:
{
'token': '<ACCESS_TOKEN>'
'username': '<USERNAME>'
'name': '<FULL_NAME>'
'id': '<ID>'
'picture': '<PROFILE_PICTURE>'
}
}
If all these steps are performed correctly, the user authenticated with your Instagram Application will be able to use the the facilities provided by the SDK.
Authentication via Twitter requires additional meta-data fields in the manifest:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 | <meta-data
android:name="twitter_app_id"
android:value="YOUR_APP_ID"/>
<meta-data
android:name="twitter_consumer_key"
android:value="YOUR_CONSUMER_KEY"/>
<meta-data
android:name="twitter_consumer_secret"
android:value="YOUR_CONSUMER_SECRET"/>
<meta-data
android:name="twitter_redirect_uri"
android:value="YOUR_REDIRECT_URI"/>
|
This data can be found in Twitter Developer page, within the settings of your own application. The redirect URI should be implemented on a dedicated server. The logic of the endpoint of the redirect URI must follow the instructions written here on Twitter Developers Web Site. Essentially, your endpoint will receive two parameters from Twitter: oauth_token and oauth_verifier. All you have to do is performing a HTTP POST to https://api.twitter.com/oauth/access_token in order to convert the request token to an access token. This POST request must contain the Authorization header with your Consumer Key, your Consumer Secret, and the oauth_token just received. The request must also contain the oauth_verifier obtained, with Content-Type: application/x-www-form-urlencoded. A successful response contains the oauth_token, oauth_token_secret, user_id, and screen_name parameters. All you have to do is returning all these parameters in a JSON format. If all these steps are performed correctly, the user authenticated with your Twitter Application will be able to use the Triggers and Performers provided by the SDK.
Name | Description | From Version | Wrapper Class |
---|---|---|---|
APP-PACKAGE | Represents an application. | 1 | VT_AppPackage_Wrapper |
Name | APP-INSTALLED | |||
Description | Executes when installing a new application. |
Type | Name | Description | |
---|---|---|---|
Variables | ACTIVITY-MANAGER.APP-PACKAGE | APP-PACKAGE | Package of the installed application. |
CORE.STRING | APP-NAME | Name of the installed application. |
Name | APP-UNINSTALLED | |||
Description | Executes when uninstalling an application. |
Type | Name | Description | |
---|---|---|---|
Variables | ACTIVITY-MANAGER.APP-PACKAGE | APP-PACKAGE | Package of the uninstalled application. |
Name | APP-LAUNCH | |||
Description | Launch an application. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | ACTIVITY-MANAGER.APP-PACKAGE | APP-PACKAGE | Yes | The application to execute. |
Name | ON |
Description | Executes when airplane mode is turned on. |
Name | OFF |
Description | Executes when airplane mode is turned off. |
Name | ON |
Description | Returns true if airplane mode is turned on, false otherwise. |
Name | OFF |
Description | Returns true if airplane mode is turned off, false otherwise. |
Name | ON |
Description | Turns airplane mode on. |
Name | OFF |
Description | Turns airplane mode off. |
Name | ALARM | |||
Description | Executes every day at specified time (like a normal alarm clock). |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.TIME | TIME | Yes | Activation time. |
CORE.BOOLEAN | REPEAT | Yes | If true, alarm is repeated daily in all days defined by REPEAT-DAYS, otherwise only at next occurrence of TIME. | |
CORE.DAY-OF-WEEK-ARRAY | REPEAT-DAYS | Yes | Array with all days of the week when alarm must activate. It is ignored in case REPEAT is false. |
Name | ALARM-EVERY | |||
Description | Executes at rule activation and repeat indefinitely at regular intervals. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE-DURATION | INTERVAL | Yes | Repetition interval. |
Name | TIME-BETWEEN | |||
Description | Returns true if current time is within the specified interval. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.TIME | BEGIN | Yes | Begin time of interval to check. |
CORE.TIME | END | Yes | End time of interval to check. |
Name | PLUGGED |
Description | Executes when device is connected to battery charger. |
Name | UNPLUGGED |
Description | Executes when device is disconnected from battery charger. |
Name | UNPLUGGED | |||
Description | Executes when battery level changes. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.PERCENT-FILTER | FILTER | Yes | Percentage filter to apply. |
Name | PLUGGED |
Description | Returns true if device is connected to battery charger. |
Name | UNPLUGGED |
Description | Returns true if device is disconnected to battery charger. |
Name | LEVEL | |||
Description | Returns true if current level matches filter criteria, false otherwise. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.PERCENT-FILTER | FILTER | Yes | Percentage filter to apply. |
Name | ENABLED |
Description | Executes when Bluetooth is enabled. |
Name | DISABLED |
Description | Executes when Bluetooth is disabled. |
Name | FOUND | |||
Description | Executes when presence of a new Bluetooth device is detected. This can happen in case of execution of performer BLUETOOTH.DISCOVER or in case of manual scan by the user. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.TEXT-FILTER | NAME-FILTER | No | If present, activates trigger only if detected device name matches filter criteria. |
Variables | CORE.STRING | DEVICE-NAME | Detected device name. | |
CORE.STRING | DEVICE-ADDRESS | Detected device hardware address. |
Name | ENABLED |
Description | Returns true if Bluetooth is enabled, false otherwise. |
Name | DISABLED |
Description | Returns true if Bluetooth is enabled, false otherwise. |
Name | ON |
Description | Activates Bluetooth. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.BOOLEAN | DISCOVERABLE | YES | Declares if discoverable or not. |
Name | OFF |
Description | Deactivates Bluetooth. |
Name | DISCOVER |
Description | Begin search of devices, evantually activating Bluetooth. |
Name | NEW-PICTURE | ||
Description | Executes a new photo is taken. |
Type | Name | Description | ||
---|---|---|---|---|
Variables | CORE.URI | URI | Path of new picture. |
Name | NEW-VIDEOCLIP | ||
Description | Executes when a new videoclip is recorded. |
Type | Name | Description | ||
---|---|---|---|---|
Variables | CORE.URI | URI | Path of new videoclip. |
Name | Description | From Version | Wrapper Class |
---|---|---|---|
PHONE-NUMBER | Represent a phone number. It can be of two different types:
|
1 | VT_PhoneNumber_Wrapper |
EMAIL-ADDRESS | Represent an email address. It can be of two different types:
|
1 | VT_EmailAddress_Wrapper |
Name | Description |
---|---|
NumberFilter | Filter for Number type. Includes constants for representing filter type (LESS , EQUAL , GREATER ) |
PercentFilter | Filter for Percent type. Includes constants for representing filter type (LESS , EQUAL , GREATER ) |
TextFilter | Filter for Number type. Includes constants for representing filter type (EQUALS , CONTAINS ,
STARTS_WITH , ENDS_WITH ) |
Name | Description | From Version | Wrapper Class |
---|---|---|---|
STRING | Represents a random length string. | 1 | VT_String_Wrapper |
TEXT-FILTER | Represent a filter for text strings. It is made of an index aimed to identify filter type, a boolean allowing to define if comparison should be case sensitive and a string with value to use for filtering matching. | 1 | VT_TextFilter_Wrapper |
BOOLEAN | Represent a boolean value (true or false). | 1 | VT_Boolean_Wrapper |
NUMBER | Represent a decimal number. | 1 | VT_Number_Wrapper |
NUMBER-FILTER | Represent a filter for integer and decimal numbers. It is made of an index aimed to identify filter type and a decimal number to use for filtering. | 1 | VT_NumberFilter_Wrapper |
PERCENT | Represent an integer percent value. | 1 | VT_Percent_Wrapper |
PERCENT-FILTER | Represent a filter for integer percent values. It is made of an index aimed to identify filter type and an integer number to use for filtering. | 1 | VT_PercentFilter_Wrapper |
TIMESTAMP | Represent a date and time with millisectonds precision. | 1 | VT_Timestamp_Wrapper |
DATE | Represent a date. | 1 | VT_Date_Wrapper |
TIME | Represent a time with milliseconds precision. | 1 | VT_Time_Wrapper |
DURATION | Represent a duration, expressed in seconds. | 1 | VT_Duration_Wrapper |
DAY-OF-WEEK | Represent a day of the week. | 1 | VT_DayOfWeek_Wrapper |
DAY-OF-WEEK-ARRAY | Represent an array of days of the week. No duplicates are allowed and array max size is 7. | 1 | VT_DayOfWeekArray_Wrapper |
URI | Represent a reference to a resource. | 1 | VT_Uri_Wrapper |
Name | ON |
Description | Enable background synchronization. |
Name | OFF |
Description | Disable background synchronization. |
In practice, using this module will have the effect of controlling account synchronization flag reported in the screenshot below (taken from a Google Nexus 5).
Name | Description | From Version | Wrapper Class |
---|---|---|---|
URI | Represents a Dropbox Relative Uri. | 1 | VT_Dropbox_Uri_Wrapper |
Name | DIR-CREATED | |||
Description | Executes when a new directory is created by the Dropbox user. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | DROPBOX.URI | DIR-PATH | No | Filter criteria for path of the folder created. |
CORE.STRING | DIR-NAME | No | Filter criteria for name of the folder created. | |
Variables | DROPBOX.URI | DIR-NAME | Directory name. |
Name | DIR-CREATED | |||
Description | Executes when a directory is deleted by the Dropbox user. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | DROPBOX.URI | DIR-PATH | No | Filter criteria for path of the folder deleted. |
CORE.STRING | DIR-NAME | No | Filter criteria for name of the folder deleted. | |
Variables | DROPBOX.URI | DIR-NAME | Directory name. |
Name | FILE-ADDED | |||
Description | Executes when a file is added by the Dropbox user. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | DROPBOX.URI | FILE-PATH | No | Filter criteria for path of the file added. |
CORE.STRING | FILE-NAME | No | Filter criteria for name of the file added. | |
Variables | DROPBOX.URI | FILE-PATH | File path. |
Name | FILE-DELETED | |||
Description | Executes when a file is deleted by the Dropbox user. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | DROPBOX.URI | FILE-PATH | No | Filter criteria for path of the file deleted. |
CORE.STRING | FILE-NAME | No | Filter criteria for name of the file deleted. | |
Variables | DROPBOX.URI | FILE-PATH | File path. |
Name | MEDIA-UPLOADED | |||
Description | Executes when a media file is uploaded by the Dropbox user. |
Type | Name | Required | Description cc | |
---|---|---|---|---|
Parameters | DROPBOX.URI | FILE-PATH | No | Filter criteria for path of the media uploaded. |
CORE.STRING | FILE-NAME | No | Filter criteria for name of the media uploaded. | |
Variables | DROPBOX.URI | DIR-TO | Media File path. |
Name | SPACE-USED | |||
Description | Executes when the used space in Dropbox is equal/greater/lesser than a predefined percentage value passed as a parameter. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.PERCENT-FILTER | PERCENT | Yes | Filter criteria for used space. |
Name | DIR-CREATE | |||
Description | Creates a new directory in Dropbox. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | DROPBOX.URI | DIR-PATH | No | Dropbox relative path of the directory to be created. |
CORE.STRING | DIR-NAME | Yes | Name of the directory to be created. |
Name | DIR-DELETE | |||
Description | Deletes an existing directory in Dropbox. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | DROPBOX.URI | DIR-PATH | No | Dropbox relative path of the directory to be deleted. |
CORE.STRING | DIR-NAME | Yes | Name of the directory to be deleted. |
Name | FILE-ADD | |||
Description | Adds a new file in Dropbox. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | DROPBOX.URI | FILE-PATH | No | Dropbox relative path of the file to be added. |
CORE.URI | FILE | Yes | Uri of the file to be added. |
Name | FILE-DELETE | |||
Description | Deletes an existing file in Dropbox. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | DROPBOX.URI | DIR-PATH | Yes | Dropbox relative Uri of the file to be deleted. |
Name | Description | From Version | Wrapper Class |
---|---|---|---|
PROFILE | Represents a Facebook profile, with id and name. | 1 | VT_Profile_Wrapper |
Name | STATUS-UPDATE | |||
Description | Executes when weather forecast for following day is Cloudy. | |||
Logic | Periodic check every 10 minutes. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | FACEBOOK.PROFILE | PROFILE | No | Profile to monitor. If empty, current profile is monitored. |
CORE.TEXT-FILTER | TEXT-FILTER | No | Filter criteria for status. |
Name | BIRTHDAY | |||
Description | Executes when weather forecast for following day is Cloudy. | |||
Logic | Periodic check every 12 hours. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | FACEBOOK.PROFILE | PROFILE | Yes | Profile to monitor. |
CORE.NUMBER | DAYS-BEFORE | No | Filter criteria for status. |
Name | UPDATE-STATUS | |||
Description | Executes when weather forecast for following day is Cloudy. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.STRING | TEXT | Yes | Status message. |
Name | POST-LINK | |||
Description | Executes when weather forecast for following day is Cloudy. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.STRING | LINK | Yes | Link to share. |
Parameters | CORE.STRING | CAPTION | Yes | Caption for link. |
Parameters | CORE.STRING | DESCRIPTION | No | Link description. |
Name | Description | From Version | Wrapper Class |
---|---|---|---|
EVENT | Represents a Google Calendar event. | 1 | VT_Event_Wrapper |
CALENDAR | Represents a User Google Calendar. | 1 | VT_Calendar_Wrapper |
Name | ON-EVENT | |||
Description | Executes when a calendar event starts. | |||
Logic | Periodic check every 10 minutes. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | GCALENDAR.CALENDARDESC | CALENDARDESC | Yes | User Calendar description. |
CORE.STRING | KEYWORD | No | Calendar keyword to match. | |
LOCATION.AREA | LOCATION | No | Location of the Event. | |
Variables | GCALENDAR.EVENT | EVENTTOSEND | Calendar Event. | |
CORE.STRING | EVENTPOS | Location of the event |
Name | ON-OVERLOAD | |||
Description | Executes when tomorrow has more than N events, where N is a parameter provided by user. Please notice that trigger fires only once per day, unless number of events changes going below and above limit again. | |||
Logic | Periodic check every 10 minutes. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | GCALENDAR.CALENDARDESC | CALENDARDESC | Yes | User Calendar description. |
CORE.NUMBER | LIMIT | Yes | Limit for tomorrow events. | |
Variables | CORE.NUMBER | NUM-EVENTS | Number of tomorrow events. |
Name | CREATE-EVENT | |||
Description | Sends an email with specified parameters. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | GCALENDAR.EVENT | EVENT | Yes | Event to be created. |
Name | Description | From Version | Wrapper Class |
---|---|---|---|
URI | Represents a Google Drive Parent Folder Identifier | 5 | VT_Dropbox_Uri_Wrapper |
Name | DIRADDED | ||||||
Description | Executes when a new directory is added by the Google Drive Dropbox user. | ||||||
Logic | Periodic check every 15 minutes. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.STRING | DIR-NAME | No | Filter criteria for name of the folder added. |
Name | FILEADDED | ||||||
Description | Executes when a new file is added by the Google Drive Dropbox user. | ||||||
Logic | Periodic check every 15 minutes. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.STRING | DIR-NAME | No | Filter criteria for name of the file added. |
Name | DIRADD | |||
Description | Adds a folder in Google Drive |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.STRING | DIR | Yes | Name of of the folder to be added. |
Parameters | GDRIVE.URI | DIR-ID | No | Parent directory identifier of the folder to be added. |
Name | DIRDELETE | |||
Description | Deletes a folder in Google Drive |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.STRING | DIR | Yes | Name of of the folder to be deleted. |
Parameters | GDRIVE.URI | DIR-ID | No | Parent directory identifier of the folder to be deleted. |
Name | INCOMING | |||
Description | Executes when receiving a new email. | |||
Logic | Based on real time updates from Google. It works even without Play Services (GCM). |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CONTACTS.EMAIL-ADDRESS | SENDER | No | Email sender. |
CORE.TEXT-FILTER | SUBJECT-FILTER | No | Email subject filter. | |
CORE.TEXT-FILTER | BODY-FILTER | No | Email body filter. | |
Variables | CONTACTS.EMAIL-ADDRESS | SENDER | Email sender. | |
CORE.STRING | SENDER-EMAIL | Email sender email. | ||
CORE.STRING | SENDER-NAME | Email sender name. | ||
CORE.STRING | SUBJECT | Email subject. | ||
CORE.STRING | BODY | Email body. | ||
CORE.URI | ATTACH | Email attachment. |
Name | SEND | |||
Description | Sends an email with specified parameters. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CONTACTS.EMAIL-ADDRESS | RECIPIENT | Yes | Email recipient. |
CORE.STRING | SUBJECT | No | Email subject. | |
CORE.STRING | BODY | No | Email body. | |
CORE.URI | ATTACH | No | Email attachment as Content Uri. |
Name | HEADPHONE-PLUGGED | |||
Description | Executes when jack is plugged in |
Name | HEADPHONE-UNPLUGGED | |||
Description | Executes when jack is plugged out |
Name | HEADPHONE-PLUGGED | |||
Description | Checks if jack is plugged in |
Name | HEADPHONE-PLUGGED | |||
Description | Checks if jack is plugged out |
Name | NEW-LIKE | |||
Description | Executes when a new “like” is received on a user’s media posted on Instagram. | |||
Logic | Periodic check every 30 minutes. |
Name | NEW-PHOTO-FROM-ME | |||
Description | Executes when a new photo is posted by the user on Instagram. | |||
Logic | Periodic check every 20 minutes. |
Name | NEW–PHOTO-FROM-FOLLOWING | |||
Description | Executes when a new photo is posted by a user followed by the current user. | |||
Logic | Periodic check every 20 minutes. |
Name | NEW-VIDEO-FROM-ME | |||
Description | Executes when a new video is posted by the user on Instagram. | |||
Logic | Periodic check every 20 minutes. |
Name | NEW-VIDEO-FROM-FOLLOWING | |||
Description | Executes when a new video is posted by a user followed by the current user. | |||
Logic | Periodic check every 20 minutes. |
Name | Description | From Version | Wrapper Class |
---|---|---|---|
POSITION | Represents a position through latitude and longitude coordinates. | 1 | VT_Position_Wrapper |
AREA | Represents a circular area, defined through a centre (latitude and longitude) and a radius. | 1 | VT_Area_Wrapper |
Name | IN | |||
Description | Executes when entering into an Area. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | LOCATION.AREA | AREA | Yes | Area to monitor |
Name | OUT | |||
Description | Executes when exiting from an Area. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | LOCATION.AREA | AREA | Yes | Area to monitor |
Name | IN | |||
Description | Returns true if current position is inside the specified area. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | LOCATION.AREA | AREA | Yes | Area to monitor |
Name | OUT | |||
Description | Returns true if current position is outside of the specified area. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | LOCATION.AREA | AREA | Yes | Area to monitor |
Name | STATUS-BAR | |||
Description | Shows a notification on status bar. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.STRING | TITLE | Yes | Notification title. |
CORE.STRING | MESSAGE | Yes | Notification message. |
Name | TOAST | |||
Description | Shows a toast notification. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.STRING | TEXT | Yes | Message to show. |
Name | SHAKE-HORIZONTAL | |||
Description | Executes in case of horizontal device shake. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.PERCENT | SENSITIVE | No | Shake sensitivity. |
Name | SHAKE-VERTICAL | |||
Description | Executes in case of vertical device shake. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.PERCENT | SENSITIVE | No | Shake sensitivity. |
Name | INCOMING | |||
Description | Executes when receiving an SMS. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CONTACTS.PHONE-NUMBER | SENDER | No | If present, trigger is executed only if SMS sender matches with provided one. |
CORE.TEXT-FILTER | TEXT-FILTER | No | If present, trigger is executed only if SMS content matches filter. | |
Variables | CORE.STRING | TEXT | Message content. | |
CORE.TIMESTAMP | TIMESTAMP | Message date and time. | ||
CORE.STRING | SENDER.NAME | Eventual sender name, otherwise null. | ||
CONTACTS.PHONE-NUMBER | SENDER.PHONE-NUMBER | Eventual sender number, otherwise null. |
Name | SEND | |||
Description | Sends an SMS. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.STRING | TEXT | Yes | Message content. |
CONTACTS.PHONE-NUMBER | RECIPIENT-NUMBER | Yes | Recipient number. |
Name | Description | From Version | Wrapper Class |
---|---|---|---|
SIGNAL-STRENGTH | Represents signal strength. | 1 | VT_SignalStrength_Wrapper |
Name | RINGING | |||
Description | Executes when device is ringing for an incoming call. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CONTACTS.PHONE-NUMBER | PHONE-NUMBER | No | If present, trigger is executed only if caller number matches with provided one. |
Variables | CONTACTS.PHONE-NUMBER | PHONE-NUMBER | Eventual caller number, otherwise null. |
Name | OFFHOOK | |||
Description | Executes when a call starts. |
Name | IDLE | |||
Description | Executes when device, after a call, comes back to idle status. |
Name | SIGNAL-STRENGHT | |||
Description | Executes when GSM signal strength changes. |
Type | Name | Description | ||
---|---|---|---|---|
Variables | TELEPHONY.SIGNAL-STRENGTH | STRENGHT | Detected signal strength when trigger executes |
Name | ANSWER | |||
Description | Answer to an incoming call (so it can only work in case there is an incoming call). |
Name | REJECT | |||
Description | Reject an incoming call (so it can only work in case there is an incoming call). |
Name | MUTE | |||
Description | Set mute to an incoming call (so it can only work in case there is an incoming call). |
Name | CALL-PHONE-NUMBER | |||
Description | Make a call to a provided number. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CONTACTS.PHONE-NUMBER | PHONE-NUMBER | Yes | Number to call. |
Name | END-CALL | |||
Description | Terminate a call. |
Name | VOICE-VOLUME | |||
Description | Set voice volume for calls. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.PERCENT | VOLUME | Yes | Volume percent value. |
Name | RINGER-VOLUME | |||
Description | Set ringer volume. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.PERCENT | VOLUME | Yes | Volume percent value. |
Name | SPEAK | |||
Description | Vocalizes a text. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.STRING | TEXT | Yes | Text to vocalize. |
Name | NEW-TWEET | |||
Description | Executes when a new status is tweeted by the user denoted by the USER id parameter. | |||
Logic | Periodic check every 10 minutes. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.STRING | USERID | Yes | ID of the user whose status is of interest. |
CORE.STRING | HASHTAG | No | Filter criteria for hashtag. | |
CORE.STRING | MENTIONED-USERID | No | Filter criteria for mentioned user id. | |
CORE.TEXT-FILTER | TEXT-FILTER | No | Filter criteria for status message. | |
Variables | CORE.STRING | USERID | Tweet sender user-id. | |
CORE.STRING | USER-DISPLAYNAME | Tweet sender name. | ||
CORE.STRING | TEXT | Tweet text. |
Name | REPLY-RECEIVED | |||
Description | Executes when the user is mentioned in a tweet. | |||
Logic | Periodic check every 10 minutes. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.STRING | USERID | No | ID of the user who tweeted the message. |
CORE.TEXT-FILTER | TEXT-FILTER | No | Filter criteria for status message. | |
Variables | CORE.STRING | USERID | Reply sender user-id. | |
CORE.STRING | USER-DISPLAYNAME | Reply sender name. | ||
CORE.STRING | TEXT | Reply text. |
Name | DIRECT-MESSAGE-RECEIVED | |||
Description | Executes when a direct message is received. | |||
Logic | Periodic check every 10 minutes. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.STRING | SENDER | No | ID of the user who sent the message. |
CORE.TEXT-FILTER | TEXT-FILTER | No | Filter criteria for received message. | |
Variables | CORE.STRING | USERID | Message sender user-id. | |
CORE.STRING | USER-DISPLAYNAME | Message sender name. | ||
CORE.STRING | TEXT | Message text. |
Name | FAVORITED | |||
Description | Executes when a tweet gets favorited. | |||
Logic | Periodic check every 10 minutes. |
Type | Name | Required | Description | |
---|---|---|---|---|
Variables | CORE.STRING | USERID | Tweet sender user-id. | |
CORE.STRING | USER-DISPLAYNAME | Tweet sender name. | ||
CORE.STRING | TEXT | Tweet text. |
Name | TWEET | |||
Description | Tweets a new status on Twitter user timeline. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.STRING | TEXT | Yes | Status message. |
Name | ENABLED |
Description | Executes when WiFi is enabled. |
Name | DISABLED |
Description | Executes when WiFi is disabled. |
Name | CONNECTED | |||
Description | Executes when device get connected to a WiFi network. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.STRING | SSID | No | WiFi network ID. If null any SSID leads to trigger execution. |
Name | ENABLED |
Description | Returns true if WiFi is enabled, false otherwise. |
Name | DISABLED |
Description | Returns true if WiFi is enabled, false otherwise. |
Name | CONNECTED | |||
Description | Returns true if device is connected to a WiFi network, false otherwise. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | CORE.STRING | SSID | No | WiFi network ID. If null any SSID is valid for verification. |
Name | ON |
Description | Activates WiFi. |
Name | OFF |
Description | Deactivates WiFi. |
Name | CLOUDY | |||
Description | Executes when weather forecast for following day is Cloudy. | |||
Logic | Periodic check every 5 hours. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | LOCATION.POSITION | POSITION | Yes | Position to monitor |
Variables | CORE.STRING | WEATHERSTATUS | - |
Name | FOGGY | |||
Description | Executes when weather forecast for following day is Foggy. | |||
Logic | Periodic check every 5 hours. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | LOCATION.POSITION | POSITION | Yes | Position to monitor |
Variables | CORE.STRING | WEATHERSTATUS | - |
Name | PARTIALLY-CLOUDY | |||
Description | Executes when weather forecast for following day is Partially Cloudy. | |||
Logic | Periodic check every 5 hours. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | LOCATION.POSITION | POSITION | Yes | Position to monitor |
Variables | CORE.STRING | WEATHERSTATUS | - |
Name | RAINY | |||
Description | Executes when weather forecast for following day is Rainy. | |||
Logic | Periodic check every 5 hours. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | LOCATION.POSITION | POSITION | Yes | Position to monitor |
Variables | CORE.STRING | WEATHERSTATUS | - |
Name | SNOW | |||
Description | Executes when weather forecast for following day is Snow. | |||
Logic | Periodic check every 5 hours. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | LOCATION.POSITION | POSITION | Yes | Position to monitor |
Variables | CORE.STRING | WEATHERSTATUS | - |
Name | SUNNY | |||
Description | Executes when weather forecast for following day is Sunny. | |||
Logic | Periodic check every 5 hours. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | LOCATION.POSITION | POSITION | Yes | Position to monitor |
Variables | CORE.STRING | WEATHERSTATUS | - |
Name | THUNDERSTORMS | |||
Description | Executes when weather forecast for following day is Thunderstorms. | |||
Logic | Periodic check every 5 hours. |
Type | Name | Required | Description | |
---|---|---|---|---|
Parameters | LOCATION.POSITION | POSITION | Yes | Position to monitor |
Variables | CORE.STRING | WEATHERSTATUS | - |
